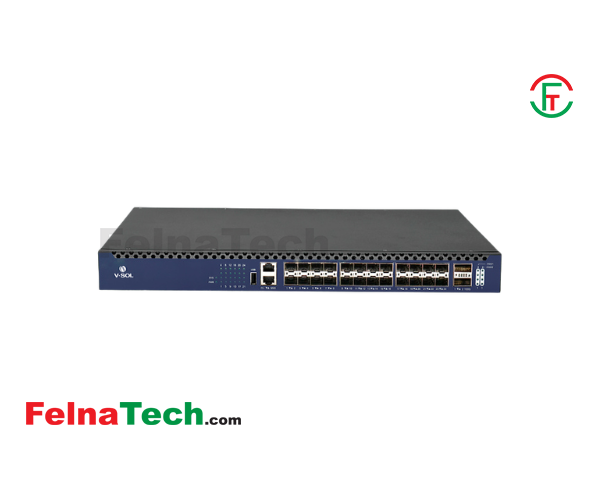

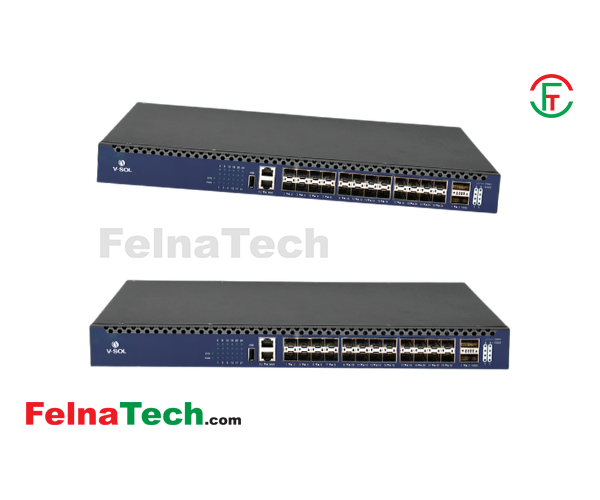

V-SOL V5826 Layer 3 Managed Ethernet Switch

Brand: Switch / VSOL

Title: V-SOL V5826 Layer 3 Managed Ethernet Switch

Model: V5826

Code: 216346712

Category: Networking / Switch / VSOL

Product Type: Switch

Price: 105000

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V5826 Layer 3 Managed Ethernet Switch

Technical Specifications:

Model: V5826

Form Factor: 1U 19-Inch Standard Rackmount Box
Downlink Interfaces: 24 × 10/100/1000Base-T Auto-negotiation Gigabit Ethernet (RJ45) Ports
Uplink Interfaces: 2 × 10G SFP+ Slots (Supports both 1G and 10G optical modules)
Management Ports: 1 × CONSOLE port, 1 × out-band management port
Switching Capacity: Up to 88 Gbps (Non-blocking wirespeed forwarding)
Packet Forwarding Rate: 65.47 Mpps
MAC Address Table: 16K MAC address learning and aging
VLAN Support: 4K Active VLANs, Port-based VLAN, IEEE 802.1Q tag-based VLAN, QinQ, Voice VLAN
Layer 3 Routing: Static Routing, Dynamic Routing (RIP v1/v2, OSPF v2), BGP, Policy-Based Routing (PBR)
IPv6 Features: Dual-stack IPv4/IPv6, IPv6 Neighbor Discovery (ND), IPv6 Static Route, OSPFv3, MLD Snooping v1/v2
Link Aggregation: Up to 8 groups with 8 ports per group (Static and LACP Dynamic Link Aggregation)
Multicast Control: IGMP v1/v2/v3 Snooping, Fast Leave, MVR (Multicast VLAN Registration)
Quality of Service (QoS): 8 queues per port, SP (Strict Priority), WRR (Weighted Round Robin), 802.1p CoS/DSCP classification
Security & ACL: L2/L3/L4 Access Control List (ACL), IP-MAC-Port Binding, Anti-ARP Spoofing, DHCP Snooping, DoS/DDoS Attack Protection, Port Isolation
Management Modes: WEB UI (HTTP/HTTPS), CLI (Command Line Interface), Telnet, SSH v1/v2, SNMP v1/v2c/v3, RMON, Syslog
Power Supply Configuration: Built-in AC power supply | Input Voltage: 100V~240V AC, 50/60Hz

Physical Specs: Dimensions: 440mm × 210mm × 44mm | Weight: ~2.8kg | Cooling: Low-noise smart cooling fans

Key Features:

High-Density Full-Gigabit Access with 10G Uplinks:
The V-SOL V5826 is equipped with 24 dedicated 10/100/1000Mbps RJ45 copper ports to support a large fleet of workstations, servers, or access points. To eliminate backbone network bottlenecks, it features 2 high-speed 10G SFP+ slots, allowing local ISPs and businesses to establish blistering-fast 10-Gigabit fiber links directly to core networks or distribution nodes.

Advanced Layer 3 Dynamic Routing Architecture:
Engineered to operate as a robust core or distribution layer element, this switch supports fully-fledged Layer 3 enterprise routing protocols. Run static routing alongside dynamic protocols like RIP v1/v2, OSPF v2, and BGP for smart, automated data path discovery. Policy-Based Routing (PBR) gives network admins granular control over security and traffic steering.

Dual-Stack IPv4/IPv6 Carrier Compatibility:
Future-proof your network for next-generation internet architecture across Bangladesh. The V5826 provides complete native support for both IPv4 and IPv6 protocols. Features like IPv6 Neighbor Discovery, OSPFv3, and MLD Snooping guarantee that your network transitions effortlessly into modern carrier environments.

Comprehensive Layer 2 & Multicast Optimization:
Maximize bandwidth efficiency with a massive 16K MAC address table and support for 4K simultaneous VLANs (including QinQ and Voice VLANs). For Bangladeshi internet service providers deploying IPTV or triple-play services, built-in IGMP Snooping v1/v2/v3 and Multicast VLAN Registration (MVR) ensure butter-smooth streaming without flooding local networks.

Enterprise-Grade Security & Attack Hardening:
Protect your critical infrastructure from local network manipulation and external attacks. The V5826 is guarded by a comprehensive defense matrix including Anti-ARP Spoofing, DHCP Snooping, IP-MAC-Port Binding, and dedicated DDoS mitigation. Granular L2 to L4 Access Control Lists (ACLs) allow strict validation of permitted network traffic.

Intelligently Optimized Quality of Service (QoS):
Keep latency-sensitive applications like Voice-over-IP (VoIP), video conferencing, and live gaming traffic crystal clear. With 8 priority queues per port utilizing Strict Priority (SP) and Weighted Round Robin (WRR) scheduling, the switch intelligently maps out and protects critical packets even during extreme peak utilization hours.

Flexible & Intuitive Remote Management:
Lower operational complexities (OpEx) for your IT engineers. The V5826 offers multiple enterprise management avenues, allowing easy configuration through a modern graphical WEB UI, standard industrial Command Line Interface (CLI) via Console/Telnet/SSH, or automated network orchestration using SNMP v1/v2c/v3.

The V-SOL V5826 is a premium, high-performance Layer 3 Managed Ethernet Switch engineered to serve as the reliable backbone for high-density corporate networks, data centers, and internet service provider (ISP) distribution
systems across Bangladesh. Built inside a rugged, standard 1U rackmount chassis, this high-performance switch is meticulously designed to optimize regional broadband infrastructures, commercial properties, and institutional
campuses requiring uninterrupted wirespeed switching and intelligent routing.

Powered by a robust switching matrix capable of processing up to 88 Gbps of non-blocking throughput, the V5826 flawlessly pairs 24 full-Gigabit Ethernet ports with 2 dual-rate 10G SFP+ slots for lightning-fast uplink aggregation
to higher-tier core hardware. Moving far past standard Layer 2 switches, it provides true Layer 3 enterprise functionality—including OSPF, BGP, and Policy-Based Routing—alongside comprehensive dual-stack IPv4/IPv6 compatibility.
Supported by industrial hardware security safeguards (such as Anti-ARP spoofing and DoS attack mitigation) and advanced IGMP multicast management for lag-free IPTV distribution, the VSOL V5826 is the ultimate future-proof network
solution for Bangladeshi operators seeking carrier-grade stability, top-tier performance, and elite manageability at a highly competitive total cost of ownership (TCO).
