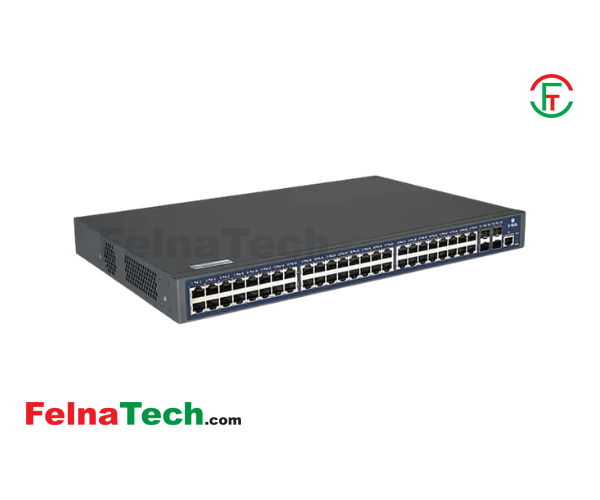

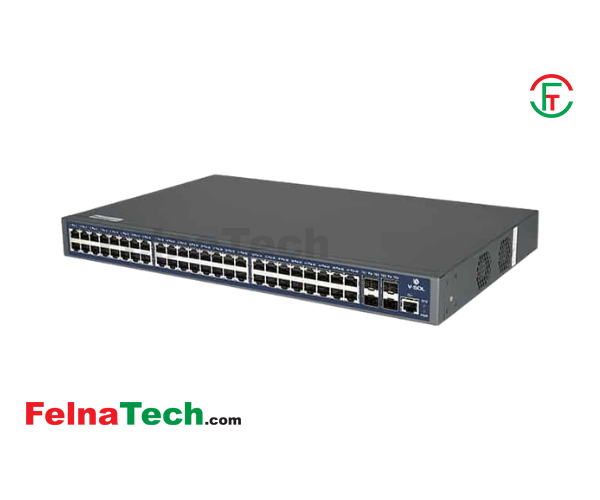

V-SOL V3552E 48-Port Managed Gigabit Ethernet Switch

Brand: Switch / VSOL

Title: V-SOL V3552E 48-Port Managed Gigabit Ethernet Switch

Model: V3552E

Code: 216346707

Category: Networking / Switch / VSOL

Product Type: Switch

Price: 49500

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V3552E 48-Port Managed Gigabit Ethernet Switch

Technical Specifications:

Model: V3552E

Form Factor: 1U 19-Inch Standard Rackmount Design
Fixed Ports: 48 × 10/100/1000 Base-T RJ45 Gigabit Ethernet Ports
Uplink Ports: 4 × 10G SFP+ Slots (Supports both 1G SFP and 10G SFP+ transceivers)
Management Interface: 1 × Console Port, 1 × Out-band Management Port
Switching Capacity: 176 Gbps Non-blocking line-rate switching
Packet Forwarding Rate: 130.95 Mpps
MAC Address Table: 16K MAC Address entries (Auto-learning and auto-aging)
VLAN Features: 4K Active VLANs, Port-based VLAN, 802.1Q Tagged VLAN, Voice VLAN, QinQ (VLAN Stacking)
Link Aggregation: Up to 8 groups with 8 ports per group (LACP / Static Link Aggregation)
Multicast Support: IGMP Snooping v1/v2/v3, MLD Snooping v1/v2, Fast Leave, Multicast VLAN Registration (MVR)
Layer 3 Basic Routing: Static Routing, DHCP Server, DHCP Relay, DHCP Snooping (Option 82)
Quality of Service (QoS): 8 queues per port, SP/WRR/SP+WRR scheduling, Traffic Shaping, Rate Limiting based on port/flow
Security & Access Control: ACL (L2/L3/L4), Port Security, IP-MAC-Port Binding, IEEE 802.1X Authentication, AAA, RADIUS/TACACS+, Storm Control, Loopback Detection, DoS Protection
Management Modes: CLI (Console/Telnet/SSH v2), Web UI (HTTP/HTTPS), SNMP v1/v2c/v3, RMON, LLDP, Syslog, Dual Image Config
Surge Protection: 6KV Port Lightning Protection
Power Supply: Single AC Built-in Power Supply | Input Voltage: 100~240V AC, 50/60Hz

Physical Specs: Operating Temperature: 0°C to 50°C | Cooling Fans: Multi-fan cooling system for optimal airflow

Key Features:

High-Density 48-Port Full Gigabit Deployment:
The V-SOL V3552E comes equipped with 48 dedicated 10/100/1000 Mbps RJ45 ports, offering an ultra-high-density wire-speed switching solution. It provides non-blocking, full-throttle Gigabit connectivity, making it the perfect core or access layer backbone switch for enterprise networks, corporate headquarters, and high-speed local ISP distribution points across Bangladesh.

Future-Proof 10G SFP+ Uplinks:
Eliminate bandwidth choking and data congestion at your network core. This high-performance managed switch features 4 dedicated 10-Gigabit SFP+ slots that allow lightning-fast fiber-optic uplinks to your main servers, core switches, or OLTs. It easily accommodates heavy data flows, ensuring seamless intra-network communication.

Advanced Enterprise-Grade L2/L2+ Management:
Take full command of your network traffic. With robust Layer 2 features like a 16K MAC table, 4096 concurrent VLANs, QinQ, and Link Aggregation (LACP), network administrators can slice and manage complex multi-department company infrastructures smoothly. Enhanced IGMP Snooping optimizes bandwidth for lag-free IPTV deployment and media streaming.

Carrier-Class Security & Threat Protection:
Shield your mission-critical business data from malicious cyber threats. The V-SOL V3552E is armed with state-of-the-art security mechanisms, including Layer 2 to Layer 4 Access Control Lists (ACLs), 802.1X authentication, RADIUS, and TACACS+. Integrated IP-MAC-Port Binding, Storm Control, and DoS protection proactively prevent unauthorized access and broadcast storms.

Built-in 6KV Surge Protection for Bangladeshi Conditions:
Designed keeping the unexpected voltage spikes and seasonal thunderstorms of Bangladesh in mind, the V3552E features specialized 6KV lightning/surge protection on all RJ45 copper ports. This robust hardware safeguarding ensures long-term operational durability and reduces equipment downtime or replacement costs significantly.

Effortless Remote Administration & Dual Boot Image:
Manage your active infrastructure effortlessly from anywhere. The V3552E supports multiple intuitive configuration interfaces, including a user-friendly Web Graphical User Interface (Web UI), industry-standard Command Line Interface (CLI) via SSH/Telnet, and SNMP management. Additionally, Dual Image configuration allows secure firmware updates without risking system bricking.

The V-SOL V3552E is a premium, enterprise-grade 48-Port Managed Gigabit Ethernet Switch engineered to handle demanding, high-bandwidth workloads across modern networks in Bangladesh.
Ideally tailored for scaling Internet Service Providers (ISPs), educational campus networks, corporate offices, and data center racks, this versatile 1U rackmount switch serves as a rugged foundation for high-performance networks
requiring ultimate stability and scalability.

Featuring a massive 176 Gbps switching capacity and a blazing-fast 130.95 Mpps packet forwarding rate, the V3552E seamlessly drives 48 full Gigabit downstream connections alongside 4 ultra-fast 10G SFP+ fiber uplink ports.
This future-proof 10GbE capability enables smooth data trunking directly to your core routers, storage servers, or OLT setups without any lag. Packed with robust Layer 2+ management features such as multi-layered Access Control Lists
(ACLs), advanced VLAN tagging (QinQ), and automated IGMP Snooping, this switch empowers operators to deploy buffer-free corporate internet, secure internal networks, and pristine IPTV services. Backed by industry-standard 6KV
lightning surge protection and user-friendly Web UI/CLI management, the VSOL V3552E is the absolute smart choice for Bangladeshi network architects looking for heavy-duty networking power at a highly competitive total cost of ownership.
