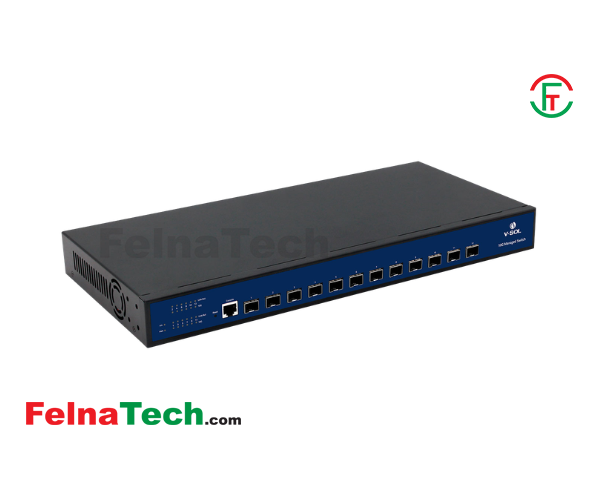

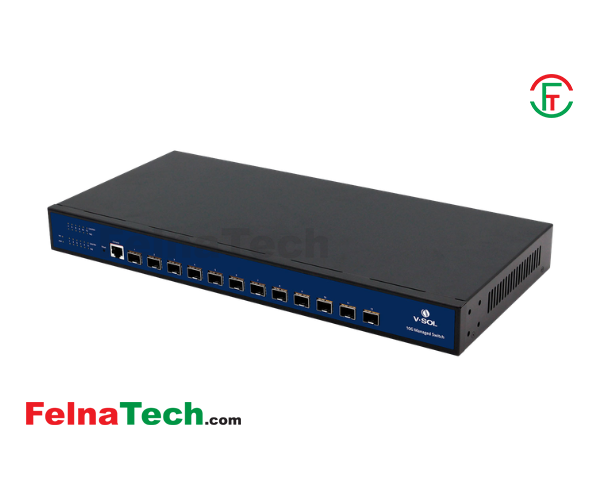

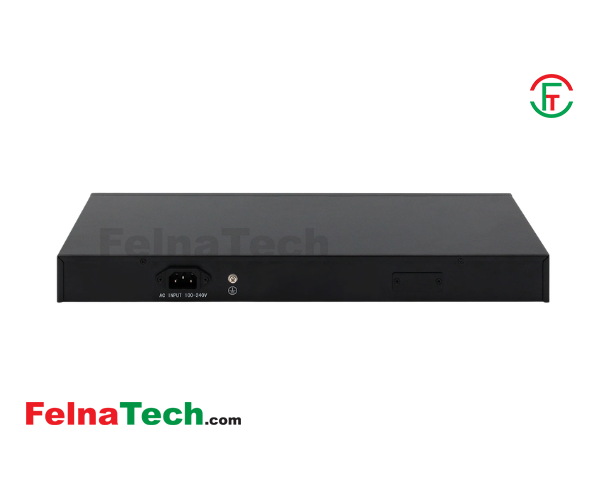

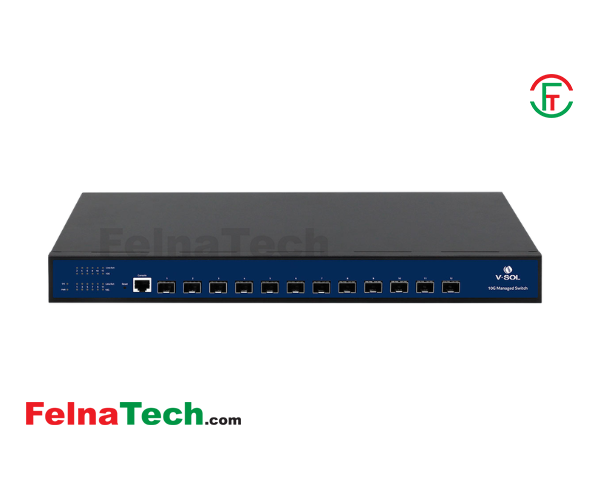

V-SOL V3212 Layer 3 Managed Ethernet Switch

Brand: Switch / VSOL

Title: V-SOL V3212 Layer 3 Managed Ethernet Switch

Model: V3212

Code: 216346708

Category: Networking / Switch / VSOL

Product Type: Switch

Price: 36500

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V3212 Layer 3 Managed Ethernet Switch

Technical Specifications:

Model: V3212

Form Factor: Compact Rackmount/Desktop Design
Downlink Interfaces: 8 × 10/100/1000 Mbps Gigabit Ethernet (RJ45) Ports
Uplink Interfaces: 4 × 10G SFP+ Slots (Supports both 1G and 10G Transceivers)
Management Ports: 1 × RJ45 Console Port, 1 × Management Port
Switching Capacity: High-performance line-rate non-blocking architecture
Layer 3 Routing: Static Routing, Dynamic Routing (RIP v1/v2, OSPF v2), ARP Proxy, DHCP Server/Relay
Layer 2 Features: 802.1Q VLAN (Up to 4K VLANs), QinQ, Link Aggregation (LACP), IGMP Snooping, Port Isolation, Storm Control
Security & Access Control: Access Control List (ACL), IP Source Guard, Port Security, IEEE 802.1X Authentication, Anti-DDoS Protection
IPv6 Readiness: Dual-Stack IPv4/IPv6, NDP, IPv6 ACL, MLD Snooping
Management Modes: CLI (Command Line Interface), WEB UI, SNMP v1/v2/v3, Telnet, SSH v2
Cooling & Design: Smart Fan Group Control for optimized heat dissipation
Power Supply: Industrial-grade built-in power module with surge protection

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

Future-Proof 10G SFP+ Uplink Ports:
Eliminate network choking points entirely. The V-SOL V3212 comes equipped with 4 dedicated 10G SFP+ slots alongside its 8 Gigabit RJ45 ports. This elite configuration allows local internet service providers (ISPs) and corporate offices to establish lightning-fast 10Gbps backbone connections to core network switches, servers, or OLTs.

Enterprise-Grade Layer 3 Dynamic Routing:
Go beyond standard Layer 2 switching capabilities. This switch features advanced Layer 3 routing protocols, including Static Routing, RIP v1/v2, and OSPF v2. It allows intelligent traffic routing directly on the switch layer, reducing the load on your main router and creating a highly efficient network architecture.

Enhanced Network Security & ACL Filtering:
Keep your local network completely safe from cyber threats. With built-in Access Control Lists (ACLs), IP Source Guard, MAC filtering, and 802.1X authentication, the V3212 prevents unauthorized access. Advanced hardware-based storm control and anti-DDoS safeguards keep corporate data secure and stable.

Advanced Multicast & IPTV Optimization:
Deliver crystal-clear, buffer-free media transmission. With robust IGMP Snooping and MLD Snooping capabilities, this managed switch optimizes multicast traffic distribution. It is perfectly tailored for internet providers across Bangladesh looking to offer high-quality, lag-free digital IPTV and streaming services.

Seamless IPv4/IPv6 Dual-Stack Compatibility:
Transition to next-generation internet protocols effortlessly. The V-SOL V3212 fully supports native IPv4 and IPv6 dual-stack networking, complete with IPv6 routing, IPv6 ACL, and Neighbor Discovery Protocol (NDP). This ensures your network remains completely future-proof.

Flexible & Intuitive Remote Management:
Take full control of your infrastructure from anywhere. Network administrators can easily configure, monitor, and troubleshoot the switch using an intuitive Web Graphical User Interface (WEB UI), industry-standard Command Line Interface (CLI), Telnet, SSH v2, or centralized SNMP network management systems.

The V-SOL V3212 is a premium, high-density Layer 3 Managed Ethernet Switch engineered to serve as the high-performance backbone for modern internet service providers (ISPs), corporate offices, and data networks across Bangladesh.
Designed for seamless distribution and core aggregations, this versatile enterprise-class switch brings unprecedented speed, security, and stability to localized networking environments without demanding an exorbitant IT budget.

At the heart of the V3212 is a powerful switching engine that unites 8 Gigabit Ethernet ports with 4 ultra-fast 10G SFP+ uplink slots. This configuration makes it an ideal gateway for linking high-capacity OLTs, network storage arrays,
or server racks. Setting it apart from standard hardware is its full-featured Layer 3 intelligence, facilitating efficient dynamic routing (OSPF/RIP) and intelligent VLAN segmentation directly on the device. Backed by full IPv6
readiness, carrier-grade security protocols, and comprehensive remote management tools (Web/CLI/SNMP), the VSOL V3212 stands as the ultimate low-latency, future-proof solution for network operators demanding elite, industrial-strength
performance.
