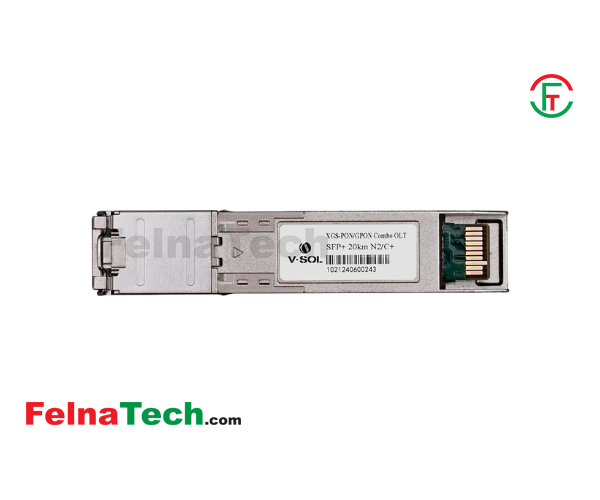

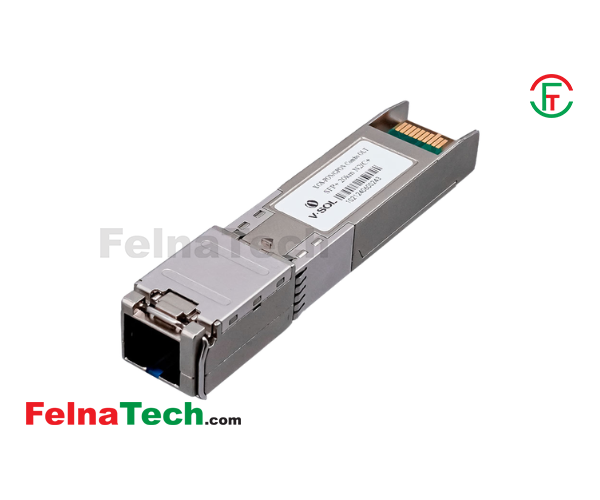

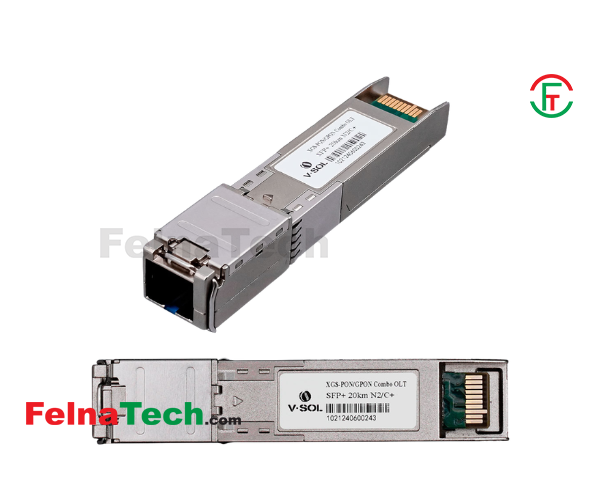

V-SOL XGS-PON & GPON Combo OLT SFP+ Optical Module (N2/C+ Class)

V-SOL XGS-PON & GPON Combo OLT SFP+ Optical Module (N2/C+ Class)

Technical Specifications:

Model: N2/C+
Form Factor: Hot-pluggable SFP+
Application/Device Type: Optical Line Terminal (OLT) Side Module
Data Rate: * GPON Mode: 2.488 Gbps Downstream / 1.244 Gbps Upstream
XGS-PON Mode: 9.953 Gbps Downstream / 9.953 Gbps Upstream
GPON: TX 1490nm / RX 1310nm
XGS-PON: TX 1577nm / RX 1270nm
Optical Class / Level: C+ (GPON) / N2 (XGS-PON)
Transmit (TX) Power: +3 to +7 dBm (GPON) | +4 to +7 dBm (XGS-PON)
Receive (RX) Sensitivity: ≤ -32 dBm (GPON) | ≤ -29 dBm (XGS-PON)
Interface Type: Simplex SC Connector (Single-Mode Fiber - SMF)
Transmission Distance: Up to 20 km (Max 1:128 Splitting Ratio)
Operating Temperature: 0°C to +70°C (Commercial Grade)

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

Next-Gen Hybrid Network Migration: Combines traditional GPON and ultra-high-speed XGS-PON into a single optical module, allowing ISPs to transition seamlessly to 10G networks without replacing existing ODN infrastructure.

Massive Bandwidth Capacity: Delivers symmetrical 10Gbps data transmission for XGS-PON, fulfilling the requirements for high-bandwidth corporate connections, 4K/8K IPTV, and smart home ecosystems.

Long-Distance Transmission: Supports smooth, high-speed data transmission over Single-Mode Fiber (SMF) up to 20 kilometers, optimizing performance across expansive FTTH deployments.

Superior Split Ratio Support: Fully capable of handling a split ratio of up to 1:128, enabling Internet Service Providers (ISPs) to connect more subscribers (ONUs/ONTs) per OLT port cost-effectively.

Hot-Swappable SFP+ Design: Built on the plug-and-play SFP+ standard form factor, ensuring easy installation, fast network upgrades, and effortless maintenance without shutting down the entire system.

Low Failure Rate & High Reliability: Engineered using high-grade optical components that guarantee low insertion loss, high power budget safety, and uninterrupted 24/7 carrier-grade performance.

Advanced DDMI Monitoring: Supports Digital Diagnostic Monitoring Interface (DDMI) allowing network engineers to track optical power, temperature, and voltage in real-time for fast troubleshooting.

Universal VSOL Compatibility: Tailored specifically for VSOL OLT series and highly compatible with multi-vendor systems supporting standard combo PON module slots.

Product Overview:

The V-SOL XGS-PON/GPON Combo OLT SFP+ Optical Module is a cutting-edge, high-performance network transceiver designed to bridge the gap between traditional GPON and ultra-fast 10G XGS-PON networks.
This innovative dual-mode combo module allows Internet Service Providers (ISPs) and telecom operators across Bangladesh to upgrade their network capabilities to 10Gbps without changing their existing single-mode fiber infrastructure,
ensuring massive cost savings and smooth technological evolution.

Equipped with a hot-pluggable SFP+ form factor and a simplex SC connector, this module operates efficiently on multi-wavelengths (1577nm/1270nm for XGS-PON and 1490nm/1310nm for GPON). Providing up to 20km transmission coverage and a heavy-duty 1:128 splitting ratio,
it is the ultimate choice for carrier-grade FTTH (Fiber to the Home), FTTB (Fiber to the Building), and enterprise deployments. If you want to future-proof your ISP infrastructure with minimal inventory overhead and low failure rates, the VSOL Combo OLT SFP+
module offers unmatched reliability and long-term network scalability.


V-SOL XGS-PON / GPON Combo OLT SFP+ Optical Module N2C Class (N2C+) offers high-performance dual-mode 10G XGS-PON and GPON support for FTTH networks. Ideal for ISP and telecom operators in Bangladesh, this optical transceiver delivers stable long-distance fiber connectivity with SC interface and high reliability for modern broadband infrastructure. Buy VSOL OLT SFP+ module in Bangladesh for scalable and future-ready fiber network deployment.
