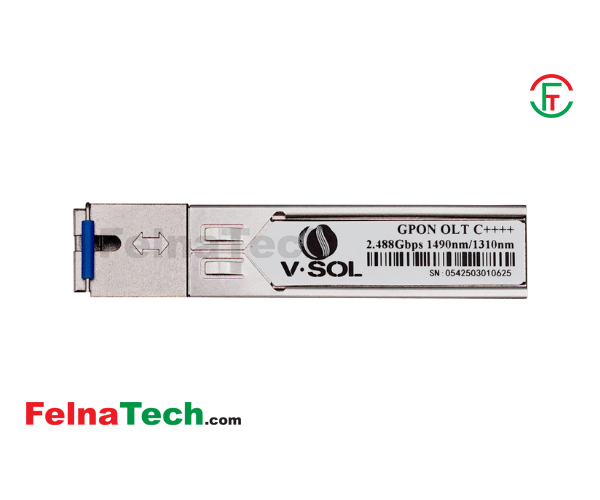

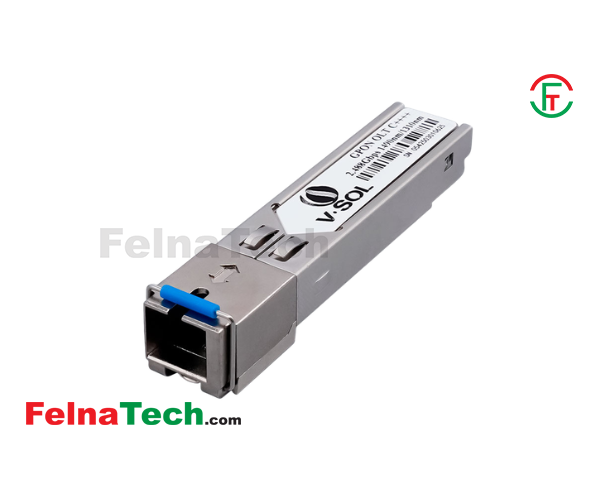

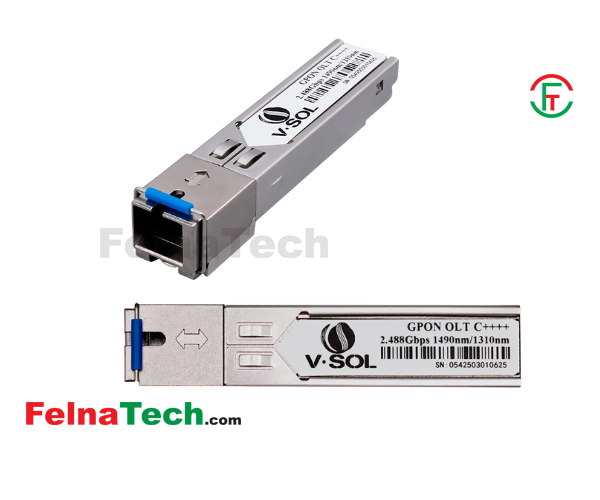

V-SOL GPON OLT SFP C++++ High-Power Transceiver Optical Module

V-SOL GPON OLT SFP C++++ High-Power Transceiver Optical Module

Technical Specifications:

Model: GPON OLT SFP C++++
Form Factor: Plug-and-play SFP (Small Form-factor Pluggable) Package
Application Mode: GPON OLT (Optical Line Terminal) Systems
Data Rate: Downstream: 2.488 Gbps | Upstream: 1.244 Gbps
Wavelength: TX 1490nm (Continuous-mode) / RX 1310nm (Burst-mode)
Connector Type: Simplex SC/UPC Receptacle
Transmission Distance: Up to 20 km over Single-Mode Fiber (SMF)
Optical Power (TX): High Power +9 dBm to +13 dBm
Receiver Sensitivity (RX): High Sensitivity ≤ -33 dBm
Digital Diagnostic Monitoring (DDM): Supported (SFF-8472 Compliant)
Compatibility: Fully compatible with VSOL, Huawei, ZTE, FiberHome, BDCOM, and standard GPON OLT slots.
Operating Temperature: 0°C to +70°C (Commercial Grade)

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

Class C++++ High-Power Output: Engineered with an enhanced optical power budget (+9 to +13 dBm), ensuring maximum signal integrity and supporting higher splitting ratios across multiple ONU/ONT connections.

Extended Reach Transmission: Supports reliable data transmission up to 20km over Single-Mode Fiber (SMF), making it ideal for both urban setups and deep-reach rural FTTH deployments.

Asymmetric Gigabit Speed: Delivers lightning-fast fiber speeds with a 2.488 Gbps downstream and 1.244 Gbps upstream transfer rate for stable broadband distribution.

Advanced DDM/DOM Support: Features real-time Digital Diagnostic Monitoring to keep track of operational parameters like TX/RX power, voltage, and temperature, allowing ISPs to easily detect link issues.

Universal Brand Compatibility: Designed with superior manufacturing standards, offering cross-brand interoperability with major OLT manufacturers like ZTE, Huawei, FiberHome, and more.

Plug-and-Play Hot-Pluggable Design: Fits perfectly into standard SFP slots and can be easily installed or replaced without shutting down the entire OLT system, minimizing network downtime.

Premium EMI Shielding: Built with a durable metal housing that provides excellent electromagnetic interference (EMI) protection, keeping data flow smooth even in high-density rack environments.

Carrier-Grade Reliability: Fully compliant with ITU-T G.984.2, CE, and RoHS standards, boasting an ultra-low failure rate to meet strict enterprise and ISP demands.

Product Overview:

The V-SOL GPON OLT SFP C++++ is a high-performance, enterprise-grade optical transceiver module designed explicitly for GPON OLT equipment in FTTH (Fiber to the Home) and FTTB (Fiber to the Building) network infrastructures across Bangladesh.
Powered by an enhanced Class C++++ optical power budget, this module delivers a powerful +9 to +13 dBm transmission output, ensuring strong signal integrity over long distances and supporting vast splitting ratios without packet drops.

Equipped with a simplex SC/UPC connector and supporting real-time Digital Diagnostic Monitoring (DDM), the VSOL SFP module provides asymmetric gigabit speeds (2.488Gbps Downstream / 1.244Gbps Upstream) up to a 20km range over Single-Mode Fiber.
It is an incredibly cost-effective and highly reliable solution for local Internet Service Providers (ISPs), offering universal hardware compatibility with top OLT brands like Huawei, ZTE, and FiberHome, thus simplifying inventory management and ensuring
maximum operational flexibility.

V-SOL GPON OLT SFP C++++ high power optical transceiver module for FTTH & ISP networks in Bangladesh. Supports 2.5G GPON with +13dBm power for stable fiber connectivity.
