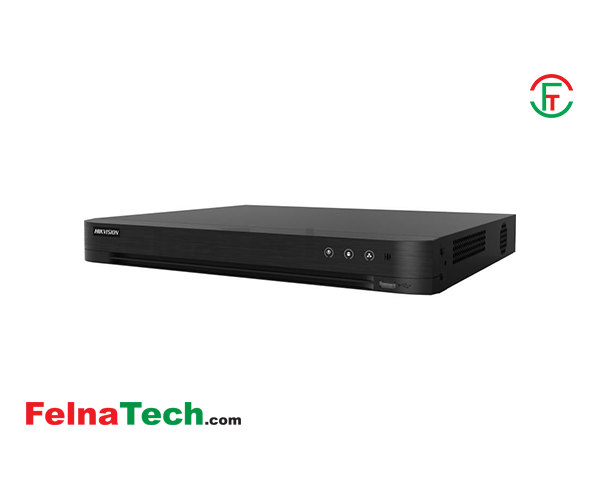

Hikvision IDS-7104HQHI-M1-S 4 Ch1080P Mini 1U H.265 DVR

Brand: Hikvision

Title: Hikvision IDS-7104HQHI-M1-S 4 Ch1080P Mini 1U H.265 DVR

Model: IDS-7104HQHI-M1-S

Code: 16161613

Category: Security

Price: 4600

Sub-Sub Category: Hikvision

Offer Status: 0

Description:

Recording

Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolution

When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Bit Rate

32 Kbps to 6 Mbps

Others

Frame Rate
Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate
32 Kbps to 6 Mbps
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps

Video Detection And Alarm

Alarm Input

N/A

Network

Ethernet Port

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Network Function

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Storage

Internal HDD

1 SATA interface

Auxiliary Interface

USB

Rear panel: 2 × USB 2.0

Power

Power Supply

12VDC, 1.33A

Power Consumption

≤ 8 W (without HDD)

Construction

Dimensions

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Net Weight

≤ 1 kg (without HDD, 2.2 lb.)

Warranty

Manufacturing Warranty

01-Year Warranty
