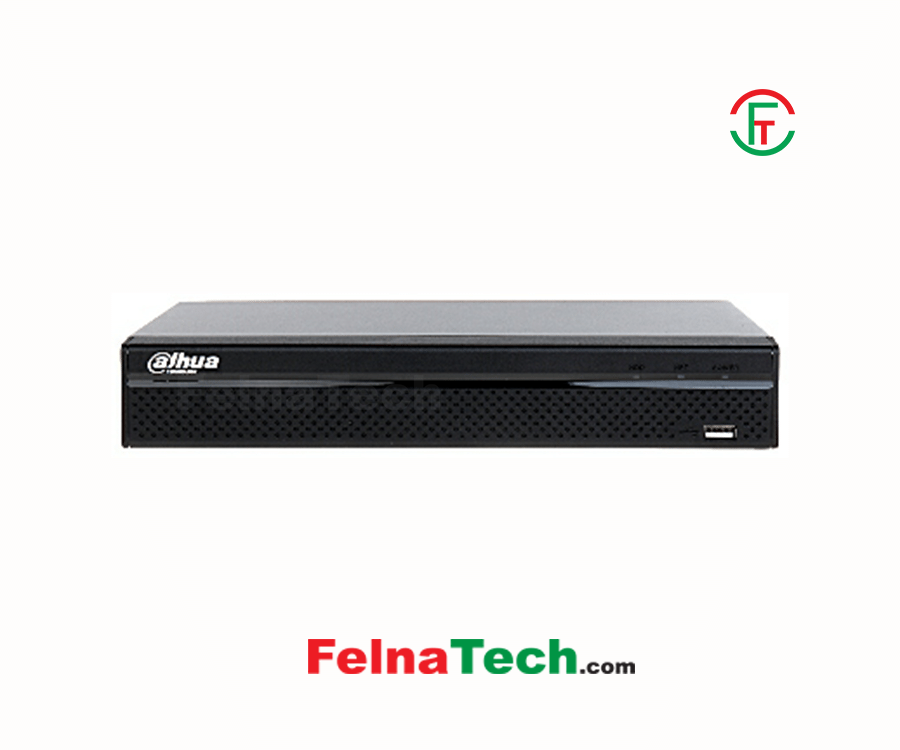

Dahua NVR4116HS-4KS3 16 Channel Smart 1U 1HDD Network Video Recorder -NVR

Brand: Dahua

Title: Dahua NVR4116HS-4KS3 16 Channel Smart 1U 1HDD Network Video Recorder -NVR

Model: DHI-NVR4116HS-4KS3

Code: 16171722

Category: Security / CCTV NVR / Dahua

Product Type: NVR

Price: 12000

Warranty: 1

Availability: Available/In Stock

Description:

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Audio and Video

IP Camera Input

16 channels

Display

Interface

1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI

Resolution

1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Decoding Capacity

AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps

AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps

Multi-Screen Display

Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16

Recording

Compression

Smart H.265+; H.265; Smart H.264+; H.264

Resolution

12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF

Record Mode

General, motion detection; intelligent; alarm

Video Detection And Alarm

Alarm Input

4 channels

Playback And Backup

Playback Function

Instant playback, general playback, event playback, tag playback, smart playback

Backup Mode

USB device and network

Third Party Support

Third Party Support

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Network

Ethernet Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

Network Function

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Storage

Internal HDD

1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.

Auxiliary Interface

USB

2 (2 rear USB 2.0 ports)

Power

Power Supply

12 VDC, 2 A

Power Consumption

Total output of NVR is <10 W(without HDD)

Component Environment

Operational Conditions

–10 °C to +55 °C (14 °F to +131 °F)

Storage Conditions

–20 °C to +60 °C (–4 °F to +140 °F)

Construction

Dimensions

204.6 mm × 206.4 mm × 45.6 mm(8.06" × 8.12" × 1.80") (W × D × H)

Net Weight

0.45 kg (0.99 lb)

Gross Weight

1.07 kg (2.36 lb)

Warranty

Manufacturing Warranty

1-year
